Radar has been one of the most significant upgrades to automobiles during the last two decades. It has luxurious advanced driver assistance system (ADAS) features such as adaptive cruise control (ACC), as well as crucial safety features such as automated emergency braking and blind spot recognition. It has progressed from a pricey option on the most expensive vehicles to an almost ubiquitous presence across all price tiers.
According to a recent IDTechEx’s report “Automotive Radar 2024-2044: Forecasts, Technologies, Applications” shows that, on average, 70% of new cars shipped in 2022 had a front-facing radar, while 30% had side radars. However, with ADAS systems becoming more sophisticated and level 3 autonomous systems entering the market for the first time, radar technology needs to improve to meet the new performance demands these systems require. As such, the industry is now seeing the first generations of “4D imaging” radars come to market and get deployed onto vehicles. With that in mind, here IDTechEx explores what a 4D imaging radar is, why it is needed, and what new technologies they are using.
What is a 4D imaging radar?
Firstly, a 4D radar is not automatically an imaging radar. The two terminologies can sometimes seem interchangeable; however, IDTechEx believes it is important to distinguish between the two. In the past, most radar have been limited to 3 dimensions, with these being azimuth (horizontal angle), distance, and velocity. A 4D radar simply means the addition of some resolving ability in the elevation direction.

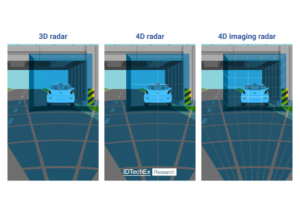

A classic example that highlights the need for this fourth dimension is the scenario of detecting a parked car in the entrance of a tunnel. A 3D radar will return the same results whether there is a car in the entrance or not. Normally, the vehicle will assume that the large reflection is a tunnel, and the adaptive cruise control system will continue. This behavior is perfectly acceptable if a human is behind the wheel and can override the ACC system accordingly, but it becomes an issue for vehicles operating at SAE level 3 and above, which has become a real-world reality over the past couple of years.
In theory a 4D radar will overcome this problem. The addition of the vertical resolution means the radar should be able to separate the stopped vehicle at ground level from the tunnel a few meters above the deck. However, if the vertical resolution is poor to the extent that the tunnel and car are still present in the same “pixel”, then the situation has not been improved. This is where the distinction between 4D radar and 4D imaging radar comes into play. The imaging radar should have sufficient angular resolution that it can distinguish the tunnel and vehicle even at very long distances.
Getting to 1˚ resolution and beyond
Radar has a natural physical limit to its resolving performance known as the Rayleigh Criterion, which is proportional to the inverse of frequency multiplied by aperture size (). In short, a normal automotive radar operating at 77GHz, and with an antenna array 10cm wide, should be able to reach a resolution 2.8˚ . For context, a typical human eye can resolve at around 0.005-0.01˚ , enough to see a 1cm object at 100m. To improve radar’s resolution its operating frequency could be increased, after all humans use visible light which is in the hundreds of terahertz. However, the frequency of radar is limited by regulations and is not something that is easily changed.
The next option is to increase the size of the aperture. While this is technically possible, doing so runs into practicality challenges. In order to get from 2.8˚ to 1˚, the aperture needs to increase from 10cm to 28cm. To get this resolution in both azimuth and elevation, the radar is now 28cm x 28cm, which will be challenging to integrate into the front bumper. It will likely cause airflow issues to the radiator, could be difficult to protect from damage, and will cause the OEM’s aesthetics teams a bit of a headache. IDTechEx has seen radars getting larger, with examples like Continental’s ARS540, Bosch’s FR5+, and Arbe’s Phoenix all exceeding 10cm, but the largest of these, the Phoenix, is still only 12.7cm x 14.3cm.
One way of combating the challenges around building a very large radar is to distribute it somehow. IDTechEx has seen a couple of approaches to this. One from Zendar involves using two lower-performance radar placed on opposite ends of the bumper and working together. Now, the aperture size has increased from less than 10cm to effectively 1.5-2m. As such, the resolution of these two radar working together is just over 0.1˚ in the azimuth. The other approach that IDTechEx has seen is to build separate antenna boards for each channel (on a 3Tx/4Rx radar) and place them across the bumper. This is the development route being explored by Plastic Omnium and Greener Wave.
Software is another key aspect of this discussion, and nearly all the companies mentioned here will be using some kind of super resolution software to improve their performance. Returning to the camera analogy, modern DSLR cameras come with powerful processors that can make the most of an image, while the cameras in modern phones have had years of software development to produce the sharpest, most natural-looking results. In radar, there are a few examples of start-ups making some exemplary algorithms for improving the resolution of radar without making any physical changes. Zadar Labs uses technologies like machine learning, AI, and encoded transmission signals to improve radar performance. Spartan, on the other hand, uses an algorithm based on research for F-18 and F-35 fighter jet applications. Super-resolution software can improve the angular resolution by a factor of 4, taking a standard 2.8˚ angular resolution radar down to 0.5-1˚ and lower if it is already employing some of the other techniques discussed here.
